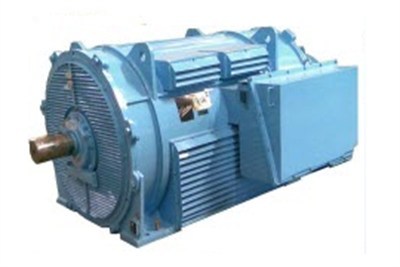

Low Voltage Motors Rerolling Mill Duty Motor

 Low Voltage Motors Rerolling Mill Duty Motor
Low Voltage Motors Rerolling Mill Duty Motor
Send Inquiry
Product Code : Su-1
Brand Name : Kirloskar
Product Description

Low Voltage Motors Rerolling Mill Duty Motor

Aditi Engineering is authorized dealer of Kirloskar products which has low voltage motors re rolling mill duty motor with features include Ambient Temperature, Altitude, Atmosphere, Relative Humidity, Voltage, Frequency and Combined Variation.

Specifications
Brand: Kirloskar Electric Company Ltd
Ambient Temperature :
0 to +45°C
Altitude :
Not exceeding 1000mtrs above mean sea level
Atmosphere :
Non corrosive & non hazardous
Relative Humidity :
Up to 100%
Voltage :
415V±10% (Can also be offered upto 650V)
Frequency :
50Hz. ±5%
Combined Variation :

Any combination of voltage and frequency



Detailed Description

Execution & Features

Features

Values/ Standards

Starting

Stator Rotor Starter/Liquid Rotor Starter

Permissible starts/hr.

2 Hot Or 3 Cold or 4 Equally spread

Loading at reduced volts

These motors are designed to run at 75% of rated supply voltage for duration of five minutes.

Insulation / temporize

Class F/F

Temp rise Stator/Rotor

Class B/F

Direction of rotation

Bi-directional

No. Of leads

TR 5&6 > ST: 6 and RT: 3 Rest 3 / 3

Degree of protection

IP23

Method of cooling

IC01

T.box position

Left hand side when viewed from non-drive end, reversible assembly at site is not possible.

Terminal box arrangement

For KCW 450 & 500: Stator – 43506201, Rotor – 43521599.

For KCW 560: Stator – 41102205, Rotor – 43506101. Terminal box rotatable through 3600 in steps of 180° (i.e. cable entry possible from top or bottom)

Bearing life(90% survival basis)

Lithium based grease to "Grade 3" as per IS: 7623 for 4 poles & above motors.

Lubricant

Direct drives: 40,000 working hours.(Based on 90% survival life)

Vibration

Normal class as per IS: 12075.

Noise

As per IS: 12065.

Shaft extension.

Single cylindrical extension as per IS: 1231.

Body material

Mild Steel

T.box material

Mild Steel

Fan material

Mild Steel

Accessories

Refer to Kirloskar Electric engineering department.

Paint & shade

Epoxy "RAL BLUE" to shade plate K-102

Bearing type and Greasing facility

Antifriction rolling contact (Ball & Roller)Online greasing facility for all frames
